Where is the VIN in the Ford S-MAX?

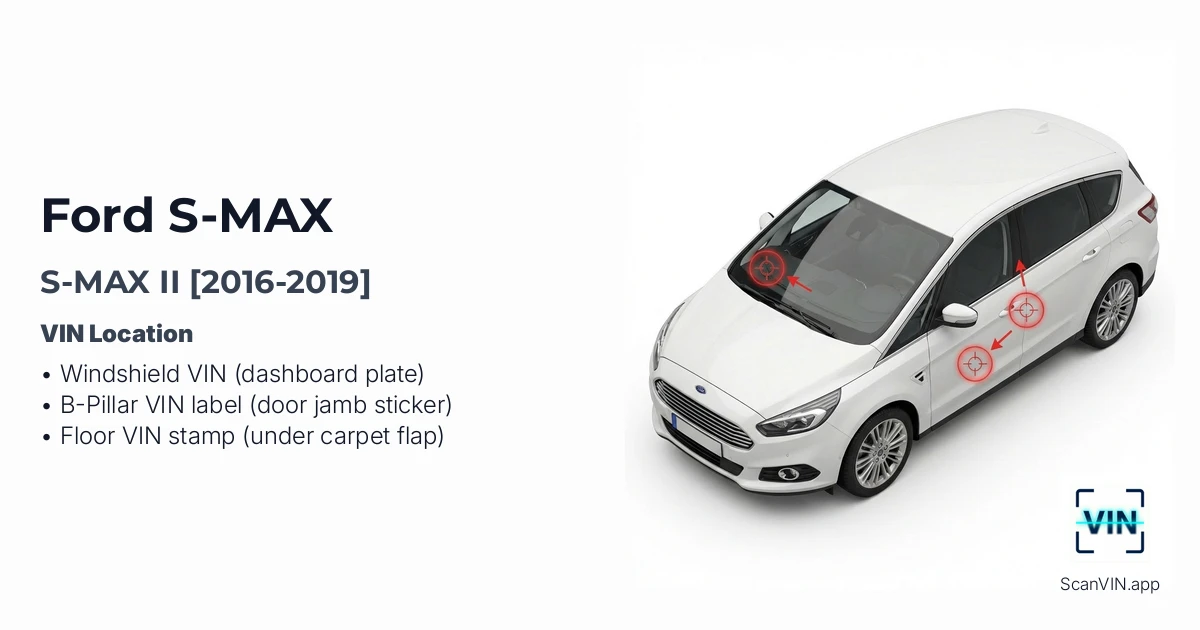

This guide shows you where to find the VIN (chassis number) on the Ford S-MAX II, produced between 2016 and 2019—including the easy-to-check label and the hidden stamped chassis VIN.

Chassis Number Locations

Windshield VIN (dashboard plate)

• Where to look: From outside the vehicle, look through the lower corner of the windshield on the left side (driver’s side in LHD). You’ll see a metal VIN plate/tag embedded in the dashboard trim.
• Access: Variable difficulty—quick to check, but glare/reflections and a dirty windshield can make characters hard to read.
• Note: This is a standard “visible VIN” location; it’s the fastest check before you even open a door.
• Tip: If reflections or glass dirt make it unreadable, capture it instantly with your phone using ScanVin’s VIN scanner so you don’t mistype characters (especially 8/B, 5/S, 0/O).

B-Pillar VIN label (door jamb sticker)

• Where to look: Open the front door and inspect the lower B-pillar door jamb near the door latch area. Look for a black sticker with white text listing the VIN plus weight ratings/paint codes (shown on the front right door jamb on the LHD vehicle in the video).
• Access: Very low difficulty—no tools needed. The only issue is the sticker can fade, peel, or get damaged over time.
• Note: On LHD cars it’s commonly on the front right jamb as shown; markets/trim can vary, so check both sides if needed.
• Tip: Because it’s high-contrast text, scan it directly with the ScanVin OCR reader for a clean, error-free VIN pull (use a little light if the car is parked in shade).

Floor VIN stamp (under carpet flap)

• Where to look: In the front footwell floor, locate a rectangular plastic flap cut into the carpet (it may be marked “VIN”). Lift the flap to reveal the VIN stamped into the chassis metal.
• Access: Moderate difficulty—this area is dark, sits in a recess, and often collects dust/grit. Contrast varies: some cars show a light/silver surface, others are much darker.
• Note: Commonly found on the passenger side for LHD vehicles (front right) as shown. If you don’t find it there, check the driver-side footwell rather than assuming it “must” be on one side.
• Tip: Because shadows and low contrast are the main problem here, use ScanVin’s Flashlight + OCR scan mode while you hold the flap up—no squinting or writing numbers down upside down.

Video Guide

Video Tutorial: Where is Vin Number Location of Ford S-Max ( 2015 - 2023 )

▶ Watch Ford S-MAX VIN Location Guide

• Walkthrough showing the B-pillar sticker, the floor VIN under the carpet flap, and the windshield VIN, with a brief explanation of VIN characters.

Video Tutorial: Ford S-Max - Where do you find the chassis number - YouTube

▶ Watch Ford S-MAX VIN Location Guide

• Short clip focused on the exact floor flap you lift to access the stamped chassis VIN.

Common Problems & Troubleshooting

• Floor VIN hard to read: Dirt in the recess and low light hide the stamped characters—lift the flap fully, wipe the area, and add direct light before scanning.
• Windshield VIN unreadable: Reflections, glare, or a spotted windshield can obscure characters—change your viewing angle or shade the area with your body/hand.
• Sticker vs. stamped VIN: A B-pillar label can be replaced or damaged—for verification, always compare it to the stamped floor VIN and the windshield VIN.

---

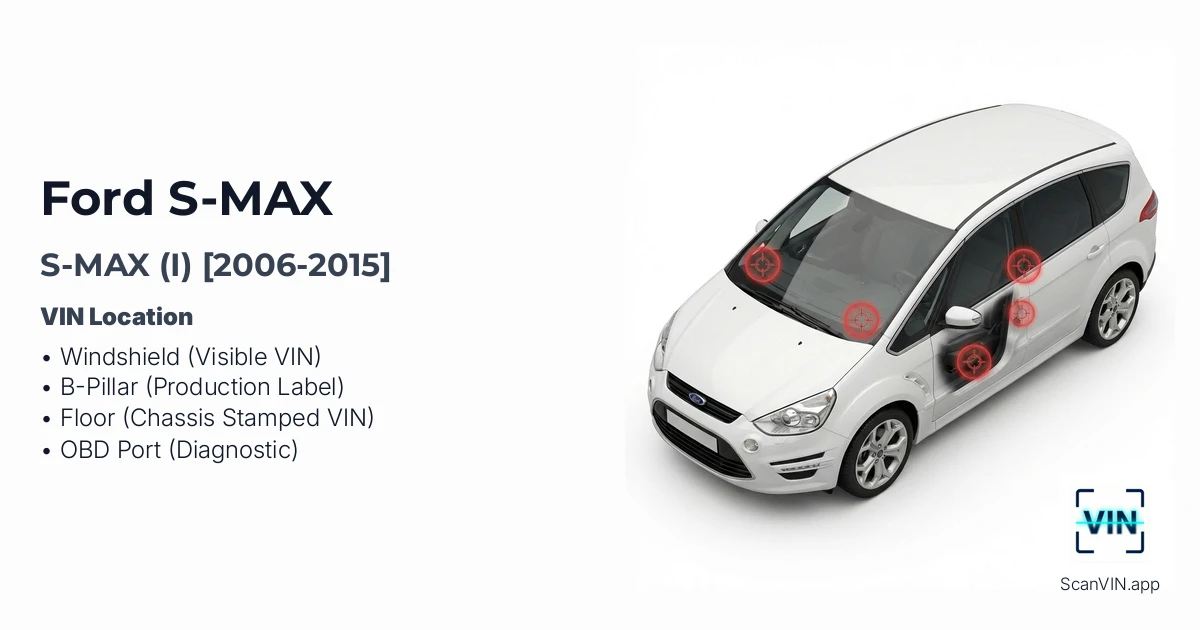

This guide shows where to find the VIN/chassis number on the Ford S-MAX (1st gen) produced between 2006 and 2015, including the easy visible VIN and the hidden stamped chassis VIN.

Chassis Number Locations

Windshield (Visible VIN)

• Where to look: From outside the car, look through the lower corner of the windshield (typically driver’s side) at the VIN plate sitting in the dashboard recess against the glass.
• Access: Easy access, but glare/reflections can wash out the characters; sometimes the wiper position partially blocks the view.
• Note: No LHD/RHD change is usually needed here—this is the standard “visible VIN” spot used for quick checks.
• Tip: If reflections make you misread characters, use your phone to scan it directly with the VIN reader so you capture the string instantly without transcription errors.

B-Pillar (Production Label)

• Where to look: Open the front passenger door and check the B-pillar lower area near the door latch/striker for a black or white VIN/production sticker (often includes weights and paint codes).
• Access: Straightforward—clean, vertical surface; only tricky if the sticker is scuffed (seatbelt slap) or weathered.
• Note: If a door has been replaced or repainted, compare this sticker VIN with the other VIN locations.
• Tip: For a fast, accurate read (especially if the label is worn), capture it with your phone so OCR can pull the VIN without you squinting at faded print.

Floor (Chassis Stamped VIN)

• Where to look: Check the front footwell floor where the stamp is in the right-side floorpan. On many LHD S-MAX vehicles this is commonly on the passenger side, but check the driver-side footwell if you don’t find it there.
• Access: Locate the rectangular pre-cut flap in the carpet/trim parallel to the door sill, then lift the carpet/plastic flap to expose the VIN stamped into the metal underneath.
• Note: This area is often very dark and collects dust/grit from shoes; the stamping can be low-contrast because it’s body-colored.
• Tip: Hold the flap open and use Flashlight + OCR on the scanner to read the stamp in the shadowed recess without crawling around trying to write it down.

OBD Port (Diagnostic)

• Where to look: Driver’s side dash area—inside the small storage compartment/cubby by the left knee (LHD). The OBD port is behind an inner cover/clip inside that compartment.
• Access: Open the compartment, then locate the small black plastic cover/clip inside and squeeze/pry it to reveal the OBD port behind it (it’s hidden behind two layers).
• Note: Many generic lists say “under the steering wheel,” but on this S-MAX it’s specifically inside the storage drawer, then behind the inner cover.
• Tip: Because it’s awkward to reach and see, scan the VIN elsewhere first (windshield/label/floor) so you’re not fighting the compartment just to confirm identity.

Video Guide

Video Tutorial: 2009 S-MAX OBD/VIN (hidden cubby location)

• Shows opening the driver’s side cubby and removing the false back/cover to reveal the OBD port on a 2009 S-MAX.

Video Tutorial: 2012 S-MAX OBD (facelift confirmation)

• Quick demonstration confirming the OBD port remains behind the storage compartment on the 2012 facelift model.

Common Problems & Troubleshooting

• Windshield VIN glare: Bright sun and glass reflections can hide characters—change your angle or shade the plate with your hand before scanning.
• Floor VIN hard to read: The flap creates deep shadow and the stamp gets dusty—vacuum/scrub lightly, then use a flashlight to bring out the stamping.
• Sticker validity warning: A B-pillar label can be missing or replaced after bodywork—always cross-check the VIN against the windshield and the stamped chassis VIN before buying.

---
