Where is the VIN in the Hyundai Elantra GT?

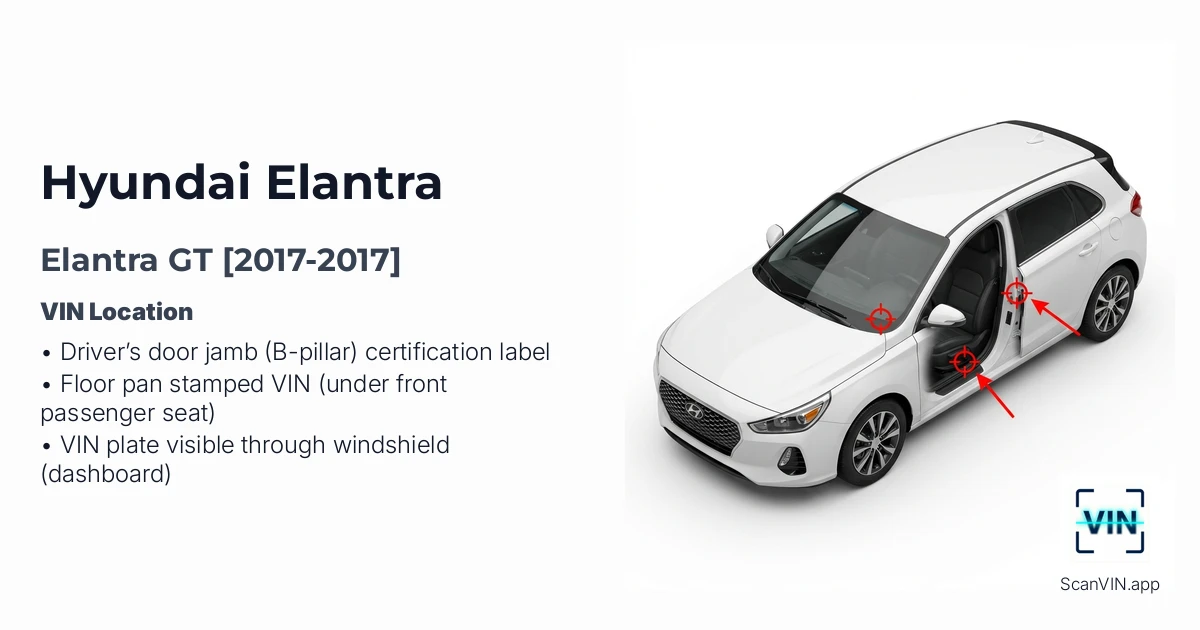

This guide shows where to find the VIN on the Hyundai Elantra GT (2017-2017) (the hatchback version also known as the Hyundai i30 in many markets), including the quick-to-check label and the hidden stamped chassis VIN under the seat.

Chassis Number Locations

Driver’s door jamb (B-pillar) certification label

• Where to look: Open the driver’s door and look at the lower section of the B-pillar (the center pillar). You’ll find a black/white sticker showing the VIN plus production and paint info.
• Access: Easy—clean, well-lit, and readable without removing parts, but it can be worn or faded on older/high-mileage cars.
• Note: Works the same way in LHD and RHD cars (it’ll be on the driver’s side for that market).
• Tip: If the label is faded, scan the VIN with your phone using the free VIN reader so you don’t misread letters/numbers.

Floor pan stamped VIN (under front passenger seat)

• Where to look: Inside the cabin, move the front passenger seat all the way back. On the floor cross-member directly under the seat (commonly on the right side for LHD vehicles), locate the pre-cut carpet flap—it blends in with the carpet and is held down with Velcro. Lift the flap to reveal the stamped VIN.
• Access: Moderate—dark under the seat, and the flap is “hidden in plain sight.” The stamped characters can be body-color painted, so contrast is low.
• Note: For RHD markets, if you don’t find it under the passenger seat, check under the driver’s seat as well.
• Tip: Because it’s shadowy and low-contrast, use ScanVin.app’s flashlight + OCR to scan it directly instead of trying to decipher the stamp by eye.

VIN plate visible through windshield (dashboard)

• Where to look: From outside the car, look through the lower corner of the windshield on the driver’s side. The VIN is displayed on the standard dash-mounted plate.
• Access: Easy to find, but reflections and glare can make it annoying to photograph cleanly.
• Note: Best checked in daylight with the camera held close to the glass.
• Tip: If glare/reflections keep ruining your photo, capture it quickly with your phone using ScanVin.app to avoid transcription mistakes.

Video Guide

Video Tutorial: VIN Number Locations - Hyundai Elantra (2017-2018)

▶ Watch Hyundai Elantra GT VIN Location Guide

• Clear, well-lit walkthrough showing the windshield VIN, the B-pillar label, and how to pull up the Velcro carpet flap to reach the stamped VIN under the seat.

Common Problems & Troubleshooting

• Can’t find the floor VIN under the seat: The carpet flap is pre-cut and sits flush—slide the seat fully back and feel for the Velcro seam before you start prying at trim.
• Stamped VIN is hard to read: It’s often painted and low-contrast—aim a flashlight at an angle and try from different viewpoints (side-lighting makes the characters pop).
• Door jamb sticker doesn’t match or looks tampered with: Treat it as a red flag—always verify the stamped floor VIN matches the label and windshield plate before buying.

---

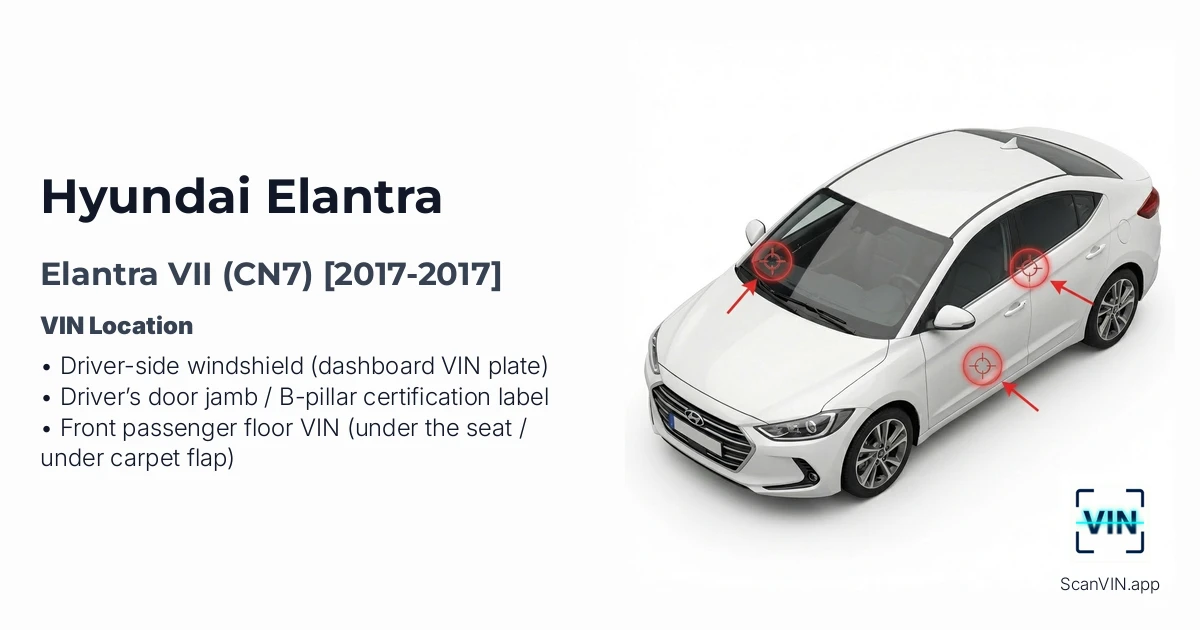

This guide covers the VIN number locations for the Hyundai Elantra VII (CN7) [2017-2017].

Chassis Number Locations

1. Driver-side windshield (dashboard VIN plate)

• Where to look: At the lower corner of the windshield on the driver’s side, where the glass meets the dashboard/cowl area. The VIN is visible from outside the car through the windshield.
• Access: Easy access, but glare/reflections on the glass can make it hard to read or photograph cleanly.
• Note: The reference vehicle is LHD (left-hand drive), so this is the left side of the car (driver side for LHD).
• Tip: If reflections wash out the characters, change your angle and capture it cleanly with the camera—you can scan the VIN directly with your phone instead of guessing letters through glare.

2. Driver’s door jamb / B-pillar certification label

• Where to look: Open the driver’s door and look on the lower B-pillar (the pillar between front and rear doors). You’ll find the manufacturer label/sticker with the VIN printed on it.
• Access: Very easy—typically the best contrast and most comfortable position to read/scan.
• Note: On LHD cars, this label is commonly on the left (driver) side as shown.
• Tip: This sticker is ideal for fast, error-free reading—use the VIN scanner to capture the full code instantly (especially helpful because “0/O” and “1/I” mistakes are common when typing VINs).

3. Front passenger floor VIN (under the seat / under carpet flap)

• Where to look: In the front footwell floor under the front passenger seat, on the floor pan/cross-member. The VIN is stamped into the painted chassis metal under a pre-cut carpet flap.
• Access: Moderate difficulty:
  • Open the front passenger door
  • Slide the passenger seat all the way back
  • Locate the carpet cut-out/flap (often Velcro)
  • Lift/pull the flap open to expose the stamped VIN on the metal
  • Expect shadows and low contrast (stamped + painted metal)
• Note: For LHD vehicles, this hidden floor VIN is commonly on the passenger side; if you don’t find it there, check the opposite front footwell floor as well.
• Tip: Because it’s dark under the seat and the stamp can be hard to photograph, turn on your flashlight and scan it with OCR so you don’t have to crouch and manually copy characters.

Video Guide

Video Tutorial: VIN Number Locations - Hyundai Elantra (2017-2018) - YouTube

▶ Watch Hyundai Elantra VIN Location Guide

• Clear walkthrough showing the windshield VIN plate, the driver-side B-pillar sticker, and the hidden floor VIN under the front passenger seat (including how to lift the carpet flap).

Common Problems & Troubleshooting

• Windshield glare: If the VIN plate looks “washed out,” move the camera off-axis and avoid direct sunlight reflections on the glass.
• Floor VIN hard to see: Under-seat lighting is poor and the stamped VIN can be low-contrast on painted metal—slide the seat back fully and use a flashlight for a sharper photo.
• Door sticker mismatch warning: The B-pillar sticker is convenient, but when buying used, always cross-check it against the windshield VIN and the stamped floor VIN—stickers can be damaged, replaced, or missing.

---

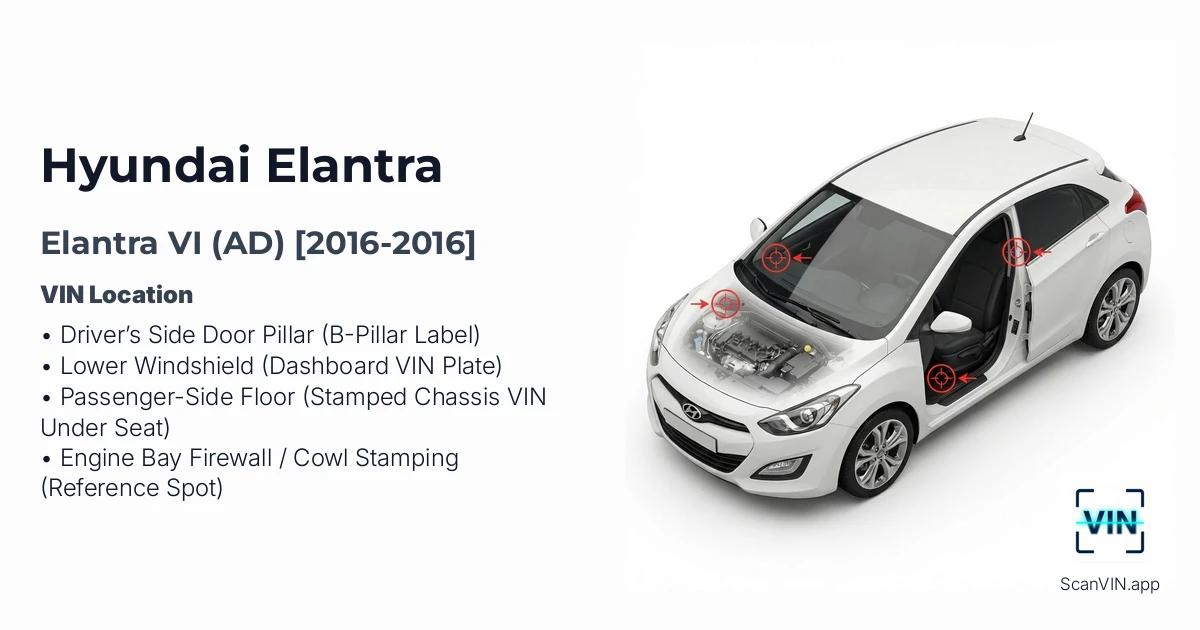

This guide covers the VIN (vehicle identification number) locations on the Hyundai Elantra VI (AD) produced between 2016–2016, including the easy-to-check label and the hidden stamped chassis VIN used for fraud checks.

Chassis Number Locations

Driver’s Side Door Pillar (B-Pillar Label)

• Where to look: Open the driver’s door and look on the B-pillar face (door jamb area). The black certification label sits below the door striker/latch mechanism (not on the door edge itself).
• Access: Generally low difficulty. High-contrast printing makes it easy to read; just don’t hold the phone too close or autofocus may hunt.
• Note: This walkthrough is shown on an LHD Elantra (driver on the left).
• Tip: If the camera keeps blurring up close, back up 6–10 inches and scan the label directly with your phone to capture the VIN cleanly without misreading characters.

Lower Windshield (Dashboard VIN Plate)

• Where to look: From outside the car, look through the windshield at the lower driver-side corner of the dashboard, near the base of the A-pillar—you’ll see the standard VIN plate behind the glass.
• Access: Moderate difficulty due to windshield glare/reflections and the awkward scanning angle through glass.
• Note: LHD reference: this plate is on the left side of the dash when seated.
• Tip: Shield the glass with your hand/jacket to kill reflections and capture the VIN instantly using the phone scanner so you don’t have to transcribe it through glare.

Passenger-Side Floor (Stamped Chassis VIN Under Seat)

• Where to look:
  1. Open the front passenger door.
  2. Slide the front passenger seat all the way backward.
  3. Find a carpet flap on the floor cross-member under the front edge of the seat.
  4. Pull the Velcro-secured flap open.
  5. The VIN is stamped into the painted chassis metal underneath (seen as stamped characters in the blue metal).
• Access: High difficulty. You must move the seat and peel back the flap; the area is dark/shadowed, and the stamping can be low-contrast if dirty or paint-filled.
• Note: On many LHD cars this is commonly found on the passenger side floor, but if you don’t find it there, check the other front footwell floor area as well.
• Tip: Turn on extra light and use the Flashlight + OCR scan mode so the app can pick up stamped characters without you kneeling in a dark footwell.

Engine Bay Firewall / Cowl Stamping (Reference Spot)

• Where to look: In the engine bay, inspect the firewall/cowl area (center to passenger side), just below the windshield seal—look for VIN characters stamped into metal.
• Access: Often obscured by grime or plastic cowl covers; lighting and cleaning may be needed.
• Note: Not demonstrated on the Elantra-specific clip, but it’s a known Hyundai-family reference area and can help cross-check other VIN sources.
• Tip: If the stamping is faint under dirt, wipe it and use High Contrast AI scanning to decipher shallow or dirty characters without guessing.

Video Guide

Video Tutorial: VIN Number Locations - Hyundai Elantra (2017-2018) - YouTube

▶ Watch Hyundai Elantra VIN Location Guide

• A clear walkthrough showing the windshield VIN, the driver-side B-pillar label, and the hidden floor VIN under the passenger seat with the Velcro flap.

Common Problems & Troubleshooting

• Windshield VIN won’t scan: glare and reflections off the glass can wash out characters—shade the area and change your viewing angle.
• Floor VIN is hard to read: the under-seat area is dark and the stamping can be paint-filled—slide the seat fully back, pull the flap wide open, and add light before scanning.
• Sticker vs. stamped VIN: door jamb labels can be replaced—if you’re verifying a car before purchase, always cross-check with the stamped chassis VIN.

---

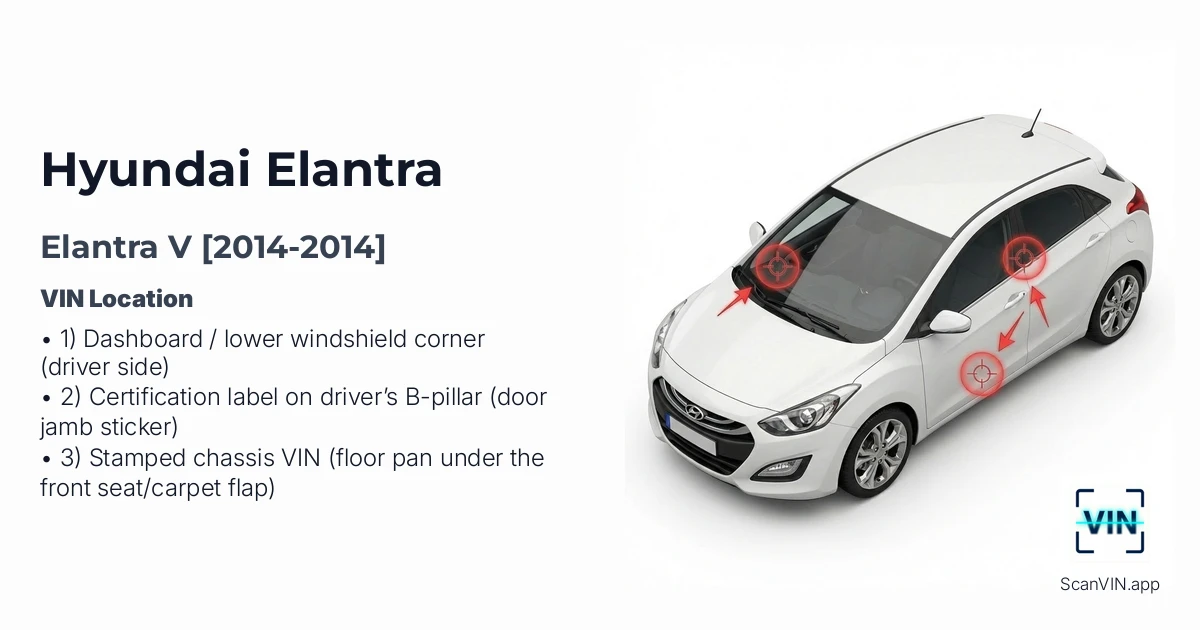

This guide shows where to find the VIN (Vehicle Identification Number) on the Hyundai Elantra V produced between 2014–2014, including the easiest “walk-up” spot and the hidden stamped chassis location.

Chassis Number Locations

1) Dashboard / lower windshield corner (driver side)

• Where to look: On top of the dashboard where it meets the windshield glass, at the lower driver-side corner. Read it from outside the vehicle by looking through the windshield near the driver-side wiper/cowl area.
• Access: No tools—just step outside and look down through the glass. Expect glare/reflections, and rain/dirt on the windshield can obscure digits.
• Note: This is the fastest check for LHD cars and is usually the first VIN inspectors verify.
• Tip: If reflections are washing out the numbers, use your phone to scan it directly with ScanVin.app so you don’t misread characters through the windshield glare.

2) Certification label on driver’s B-pillar (door jamb sticker)

• Where to look: Open the driver’s door and look at the B-pillar (center pillar between front and rear doors). The VIN is printed on a black certification sticker, typically lower down near the striker/latch area.
• Access: Easy access and good lighting usually—no tools required. Sticker condition can vary (can fade, peel, or be painted over on repaired cars).
• Note: This label is excellent for quick confirmation, but always compare it to the stamped VIN if you suspect tampering.
• Tip: For the cleanest and fastest read, use the free VIN reader on the door sticker—high contrast printing scans extremely well.

3) Stamped chassis VIN (floor pan under the front seat/carpet flap)

• Where to look: A stamped VIN is on the floor/chassis cross-member under a pre-cut carpet flap beneath the front seat area.
• Access: Slide the seat all the way backward, then lift the carpet flap to expose the metal stamping. This area is dark, and the stamped characters can be low-contrast (body-colored/painted).
• Note: On LHD Elantras it’s commonly found under the front passenger seat, but the stamping is on the right-hand side of the floor pan—so if you don’t find it, also check the opposite front footwell/seat area.
• Tip: Because it’s cramped and shadowy, turn on your phone light and capture it with ScanVin.app using Flashlight + OCR to avoid guessing at faint stamped characters.

Video Guide

Video Tutorial: VIN Number Locations - Hyundai Elantra (2011-2016) - YouTube

▶ Watch Hyundai Elantra VIN Location Guide

• Clear walkthrough of the three main VIN locations: windshield, driver door jamb label, and the stamped VIN under the front passenger seat (LHD).

Video Tutorial: hyundai elantra chassis number location - YouTube

▶ Watch Hyundai Elantra VIN Location Guide

• Shows the stamped chassis number under the front seat on an RHD-market car—useful proof that the floor VIN is on the right-hand side of the body.

Common Problems & Troubleshooting

• Windshield VIN is hard to read: Glare, rain spots, or a dirty windshield can hide digits—wipe the glass and change your viewing angle from outside.
• Floor VIN stamping looks “blank”: It’s often low-contrast and in deep shadow—slide the seat fully back, lift the carpet flap completely, and use a flashlight at a shallow angle across the stamping.
• Door-jamb sticker concerns: A missing/peeled/painted-over certification label can indicate repairs—verify against the stamped floor VIN before you buy.

---
