Where is the VIN in the Mazda CX-5?

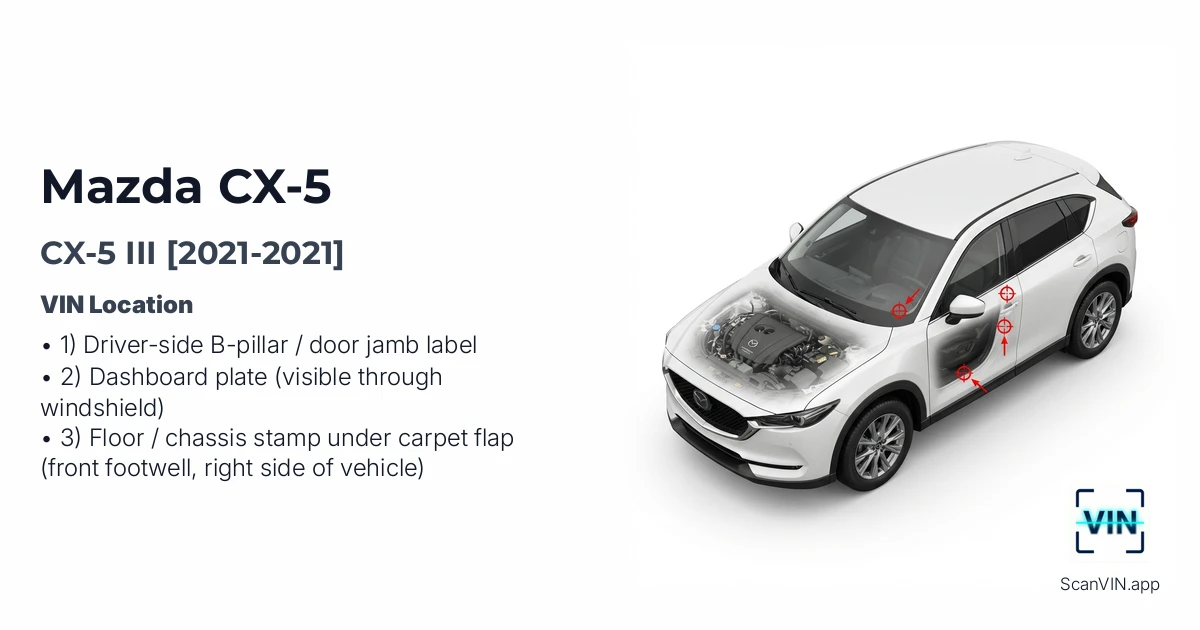

This guide covers the VIN (vehicle identification number) locations on the Mazda CX-5 III [2021-2021], so you can quickly verify the chassis number for registration, insurance, parts matching, or a used-car purchase.

Chassis Number Locations

1) Driver-side B-pillar / door jamb label

• Where to look: Open the driver’s door and look at the B-pillar face (the center pillar area where the door latch meets the body). The VIN is printed on the manufacturer sticker that also lists tire/load information and typically includes a barcode.
• Access: Usually the easiest spot—no tools needed. On newer vehicles the sticker should be clean, but it can fade or peel on older/high-mileage cars. The label is vertical, so you may need to angle your phone to keep it square.
• Note: This is a straightforward location on LHD vehicles (driver’s side). If your market is different, the label may be on the corresponding door jamb for the driver position.
• Tip: If the VIN is vertical or you’re fighting door-frame angles, use your phone to scan the barcode/VIN directly instead of typing it—fewer mistakes and faster confirmation.

2) Dashboard plate (visible through windshield)

• Where to look: From outside the vehicle, look through the lower corner of the windshield on the driver’s side. You’ll see the VIN on a metal plate riveted to the dashboard.
• Access: Easy to reach visually, but glare/reflections on the glass (or snow/dirt on the outside of the windshield) can make it hard to read.
• Note: This is one of the most “standard” VIN checks for roadside verification and quick walk-around inspections.
• Tip: When reflections wash the characters out, capture it instantly with your phone so you don’t misread a 5/S, 8/B, or 0/O through the glass.

3) Floor / chassis stamp under carpet flap (front footwell, right side of vehicle)

• Where to look: Check the front footwell floor on the right-hand side of the vehicle (commonly the front passenger side on LHD vehicles).
  Steps:
  1. Open the front passenger door (LHD).
  2. Slide the front seat all the way back.
  3. Lift the floor mat/carpet.
  4. Locate a rectangular plastic flap/cover marked “VIN”.
  5. Pry the flap open to reveal the VIN stamped into the chassis metal.
• Access: More involved—requires moving the seat and lifting carpet. It’s dark down near the floor, and the stamped characters can be low-contrast against body-colored metal, so it may take effort to see clearly.
• Note: The stamp is on the right side of the vehicle. If you don’t find it in the passenger footwell on your CX-5, check the opposite front footwell (market/steering configuration can change which side is “driver” vs “passenger,” but the report confirms the stamp stays on the vehicle’s right side).
• Tip: Because lighting and contrast are the main problem here, turn on your phone light and use Flashlight + OCR scanning so you’re not trying to read faint stamped letters while crouched over the sill.

Video Guide

Video Tutorial: VIN Locations - Mazda CX-5 (2017-2021) - YouTube

▶ Watch Mazda CX-5 VIN Location Guide

• Clear, narrated walkthrough showing the windshield VIN, the driver-side door-jamb label, and the hidden floor/chassis VIN access under the carpet flap.

Common Problems & Troubleshooting

• Windshield glare or snow/dirt blocks the view: Clean the outside glass and change your viewing angle (crouch lower); glare is worst in direct sun.
• Floor VIN is hard to see (dark + low-contrast stamped metal): Slide the seat fully back, use a strong light, and wipe the stamped area clean before trying to read it.
• Sticker VIN vs. stamped VIN mismatch: Door-jamb stickers can be replaced—always cross-check the sticker VIN against the windshield plate and the stamped chassis VIN when buying a used vehicle.

---

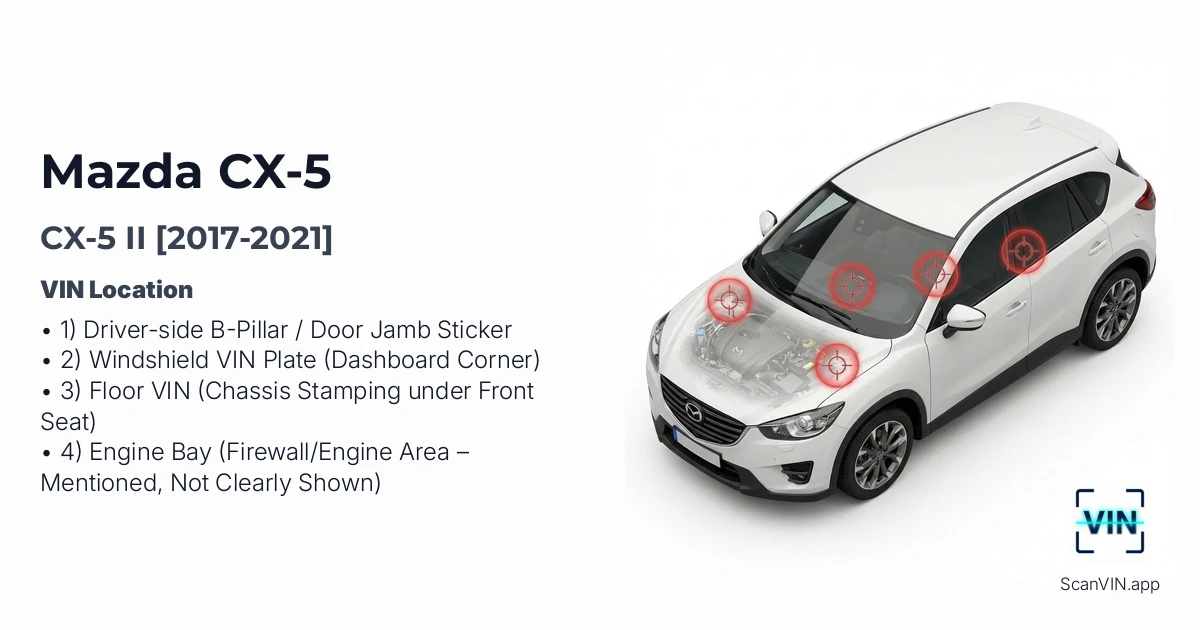

This guide shows the verified VIN (Vehicle Identification Number) locations for the Mazda CX-5 II (2017–2021), so you can match the car’s paperwork to the body and scan it accurately.

Chassis Number Locations

1) Driver-side B-Pillar / Door Jamb Sticker

• Where to look: Open the driver’s door (LHD) and look on the B-pillar/center pillar near the door latch area. You’ll see a manufacturer certification label that lists the VIN along with tire/weight info.
• Access: Usually the easiest spot—no tools needed. If the bottom edge is dusty from road spray, wipe it clean for best readability.
• Note: On RHD vehicles, this label is typically on the passenger-side B-pillar instead.
• Tip: For fast, error-free capture (and to avoid misreading characters like 8/B or 1/I), scan it directly with your phone instead of typing it out.

2) Windshield VIN Plate (Dashboard Corner)

• Where to look: From outside the vehicle, look through the lower corner of the windshield on the left side for LHD (driver side). The VIN is on a metal plate at the base of the glass.
• Access: Easy to reach, but visibility can be tricky due to glare/reflections or debris (snow/ice/dirt) on the glass—clear the corner first.
• Note: On RHD vehicles, this plate is typically on the opposite lower corner (passenger side).
• Tip: Windshield glare can hide characters—capture it quickly with the ScanVin camera by changing your angle slightly so the OCR grabs the VIN before reflections wash it out.

3) Floor VIN (Chassis Stamping under Front Seat)

• Where to look: Inside the cabin, check the front footwell floor area under the front passenger seat (commonly the passenger side for LHD vehicles). Slide the seat back, then lift the carpet flap marked “VIN” and open the small plastic cover to reveal the VIN stamped into the chassis metal.
• Access: Physically awkward and time-consuming. You’ll likely be kneeling outside the car, working in a dark area that can be dirty from shoes. The stamping can be low-contrast (body-colored metal).
• Note: If you don’t find it on the passenger-side footwell area, check the driver-side footwell area (market/trim variations exist).
• Tip: Because it’s dark and the stamping doesn’t “pop,” use Flashlight + OCR—scan the stamped VIN with your phone instead of trying to read it at a bad angle.

4) Engine Bay (Firewall/Engine Area – Mentioned, Not Clearly Shown)

• Where to look: Some references mention a VIN marking in the engine bay (often firewall/engine area), but this placement was not clearly demonstrated in the inspected footage.
• Access: Typically harder—tight angles, poor lighting, and grime/hoses can block the view.
• Note: Treat this as a secondary check, not your primary VIN source.
• Tip: If you do locate a dirty/greasy stamping, use the VIN scanner and try a cleaner angle so the camera can pick out faint characters without guesswork.

Video Guide

Video Tutorial: VIN Locations - Mazda CX-5 (2017-2021)

▶ Watch Mazda CX-5 VIN Location Guide

• A clear walkthrough showing the windshield VIN, the door jamb sticker, and the under-seat floor stamping with the “VIN” flap/cover.

Common Problems & Troubleshooting

• Windshield glare / blocked view: If the windshield corner reflects sunlight or is covered in ice/snow, change your viewing angle and clean the glass before scanning.
• Under-seat floor VIN is hard to read: Expect low light and low contrast—slide the seat fully back, lift the flap, and use a flashlight to reveal the stamping.
• Sticker vs. stamped VIN validity: Door stickers can be replaced; for serious verification (sale/inspection), confirm the VIN matches across at least two locations (e.g., B-pillar label + floor stamping).

---

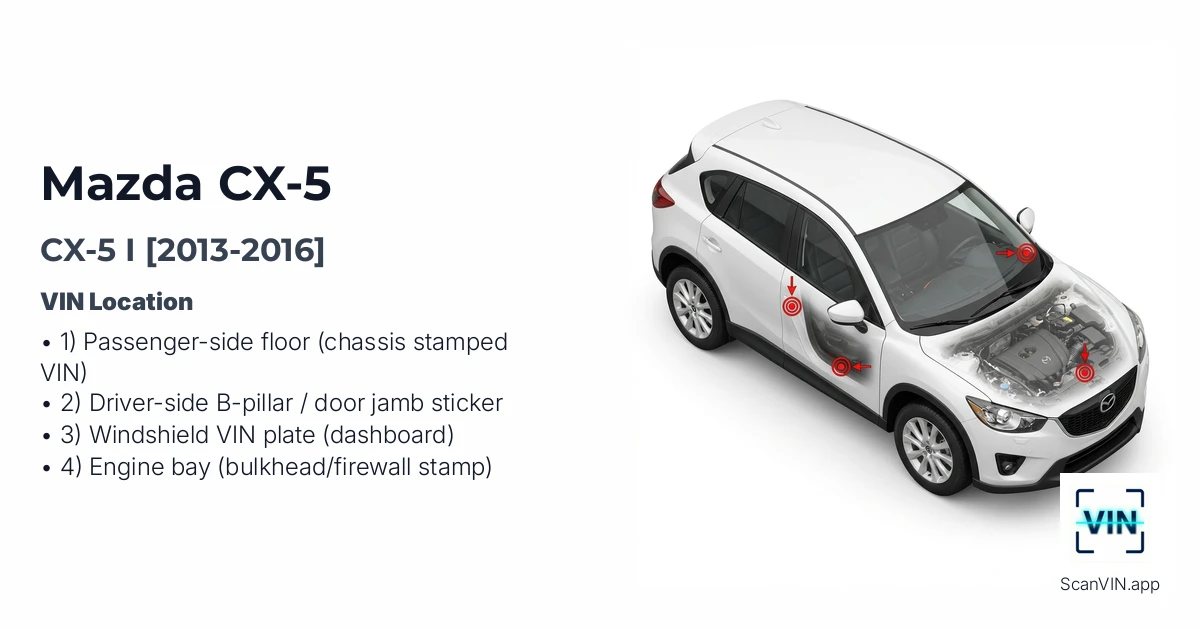

This guide shows where to find the VIN (chassis number) on the Mazda CX-5 I, produced between 2013 and 2016, including the easy-to-check spots and the hidden stamped chassis location used for identity verification.

Chassis Number Locations

1) Passenger-side floor (chassis stamped VIN)

• Where to look: In the front footwell floor under the front seat area, beneath the carpet/mat. Slide the front seat all the way back, then lift the floor mat and open the small carpet cut-out covered by a plastic flap (often labeled “FRAME NUMBER”). Under the flap, the VIN is stamped into the metal chassis.
• Access: Moderate effort—move the seat, remove the mat, pry/lift the flap, and aim light into a dark recess. The stamp can be clean or corroded/rusty depending on condition.
• Note: On LHD CX-5s this is commonly on the front passenger-side floor (right side of the vehicle); on RHD models it may mirror to the opposite side. If you don’t find it on the passenger side, check the other front footwell.
• Tip: Because it’s dark under the seat and you’re working at an awkward angle, use the in-app flashlight and OCR to read it without guessing—scan the stamped VIN directly with your phone.

2) Driver-side B-pillar / door jamb sticker

• Where to look: Open the driver’s door and look on the driver-side B-pillar (center pillar) near the door latch/striker area, typically lower down. This is the manufacturer certification label that includes tire pressure info and the VIN.
• Access: Very easy—no tools needed, usually clean because it’s inside the door opening. Watch for fading, peeling, or damage on older vehicles.
• Note: This label is great for quick checks, but it’s still a sticker—always compare it to a stamped VIN when verifying a vehicle.
• Tip: If the sticker text is small or slightly faded, don’t type it by hand—use the camera to capture it cleanly with the free VIN reader.

3) Windshield VIN plate (dashboard)

• Where to look: From outside the vehicle, look through the lower driver-side corner of the windshield at the dashboard. You’ll see a metal VIN plate with the VIN characters.
• Access: Easy to reach, but reading can be difficult due to glare/reflections and dirty/dusty glass (which can block characters).
• Note: This is a common “walk-up” VIN check, but it’s also the most likely to be unreadable if the glass is dusty or the sun hits it.
• Tip: Wipe the glass first, then capture it instantly to avoid glare mistakes—scan the windshield VIN with your camera.

4) Engine bay (bulkhead/firewall stamp)

• Where to look: Open the hood and inspect the firewall/bulkhead near the cowl, roughly center area, slightly toward the passenger side, where the VIN is stamped into the metal.
• Access: Requires opening the hood; visibility can be reduced by dirt/grease, and hoses/wiring may partially obstruct the stamp.
• Note: Useful as a backup verification point if the floor stamp is corroded or hard to access.
• Tip: If the stamp is greasy or faint, clean the area lightly and use a high-contrast scan to pick out the characters—capture it using ScanVin’s AI mode.

Video Guide

Video Tutorial: VIN Locations - Mazda CX-5 (2012-2016) - YouTube

▶ Watch Mazda CX-5 VIN Location Guide

• A clear walkthrough of the windshield VIN, driver B-pillar sticker, and the hidden floor “FRAME NUMBER” flap on an LHD Mazda CX-5.

Video Tutorial: MAZDA CX5 CHASSIS AND ENGINE NUMBER LOCATION#VIN ...

▶ Watch Mazda CX-5 VIN Location Guide

• Shows the engine-bay/firewall stamp and the floor VIN on an RHD vehicle, confirming the mirrored footwell position for different markets.

Common Problems & Troubleshooting

• Floor VIN is hard to see: It sits under the seat in heavy shadow—slide the seat back fully, peel the mat away, open the flap, and use a flashlight; if the metal is rusty, lightly scrub and re-scan.
• Windshield VIN unreadable: Dirt on the outside glass plus sun glare can wipe out characters—clean the glass and change your viewing angle.
• Sticker VIN concerns: Door jamb labels can be replaced, damaged, or faded—for purchase verification, always match the sticker VIN against a stamped chassis VIN (floor and/or firewall).
