Where is the VIN in the Volvo XC60?

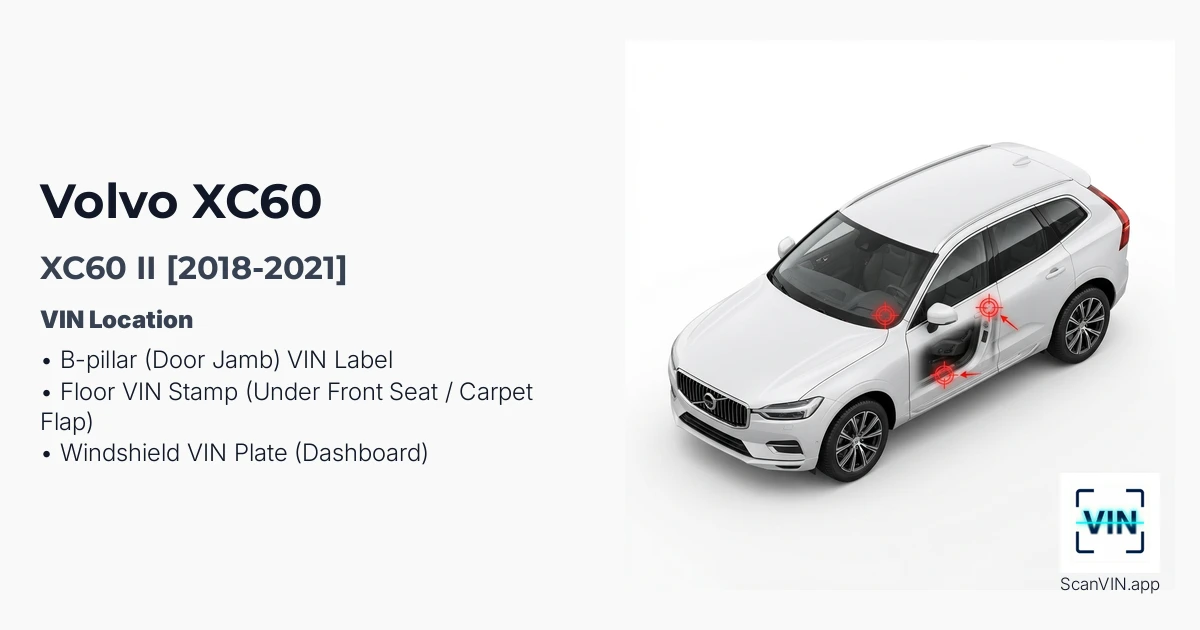

This guide shows the VIN (chassis number) locations on the Volvo XC60 II, produced between 2018–2021, including the easy-to-scan label and the hidden chassis stamp under the carpet.

Chassis Number Locations

B-pillar (Door Jamb) VIN Label

• Where to look: Open the front passenger door (typical for LHD) and look on the lower section of the B-pillar (the post between front and rear doors). You’ll see a black sticker/label with the VIN plus weight ratings/paint codes.
• Access: Easy access—just open the door. If the label is dusty, wipe it clean so the characters/barcode are sharp.
• Note: The example video is RHD, so the label is shown on the passenger side for that vehicle; on LHD (EU/US) it’s commonly on the front passenger-side door jamb, but check the other side if it’s missing.
• Tip: If the sticker is at an awkward angle, scan the VIN with your phone camera to avoid misreading similar characters (like 8/B or 5/S).

Floor VIN Stamp (Under Front Seat / Carpet Flap)

• Where to look: On the floor pan under the front seat, the VIN is stamped into the metal chassis cross-member. There’s a pre-cut carpet flap (with foam backing) you must lift to expose the stamped metal.
• Access: Slide the seat to improve working room, then pry/lift the carpet flap and aim a light into the recess. Expect dust/grit around the edges.
• Note: Don’t rely on “driver side” wording here—this stamp is commonly on the right-hand floor rail. For LHD cars that often means passenger side, but if you don’t find it there, check the opposite side as well.
• Tip: This spot is naturally dark under the seat—use ScanVin’s flashlight + OCR scan so you don’t have to contort yourself and manually write down the characters.

Windshield VIN Plate (Dashboard)

• Where to look: At the very bottom corner of the windshield, where the glass meets the dashboard. You read it from outside the car looking in.
• Access: No tools—just stand outside and look through the glass. Move the wiper blades or clear debris if they block the plate.
• Note: The video shows an RHD vehicle where the visible plate appears on the passenger side for that market; placement can vary by regulation, so check both lower corners if needed.
• Tip: Windshield glare is the main problem—use the VIN scanner to capture it instantly at an angle that avoids reflections instead of re-typing what you think you saw.

Video Guide

Video Tutorial: VOLVO VOLVO XC60 CHASSIS NUMBER LOCATION

▶ Watch Volvo XC60 VIN Location Guide

• Walk-around showing the under-seat carpet flap chassis stamp, the B-pillar label, and a quick view of the windshield VIN plate.

Common Problems & Troubleshooting

• Under-seat stamp is hard to see: It sits in a shadowed recess and often has dust—slide the seat back, lift the carpet flap fully, and use a flashlight for a clean read.
• Windshield VIN glare/reflections: Sunlight and glass reflections can hide digits—change viewing angle, shade the area with your body, and clean the glass.
• Door-jamb label issues: If the B-pillar sticker is peeled, faded, or missing, treat it as unreliable and confirm the VIN against the stamped floor VIN.

---

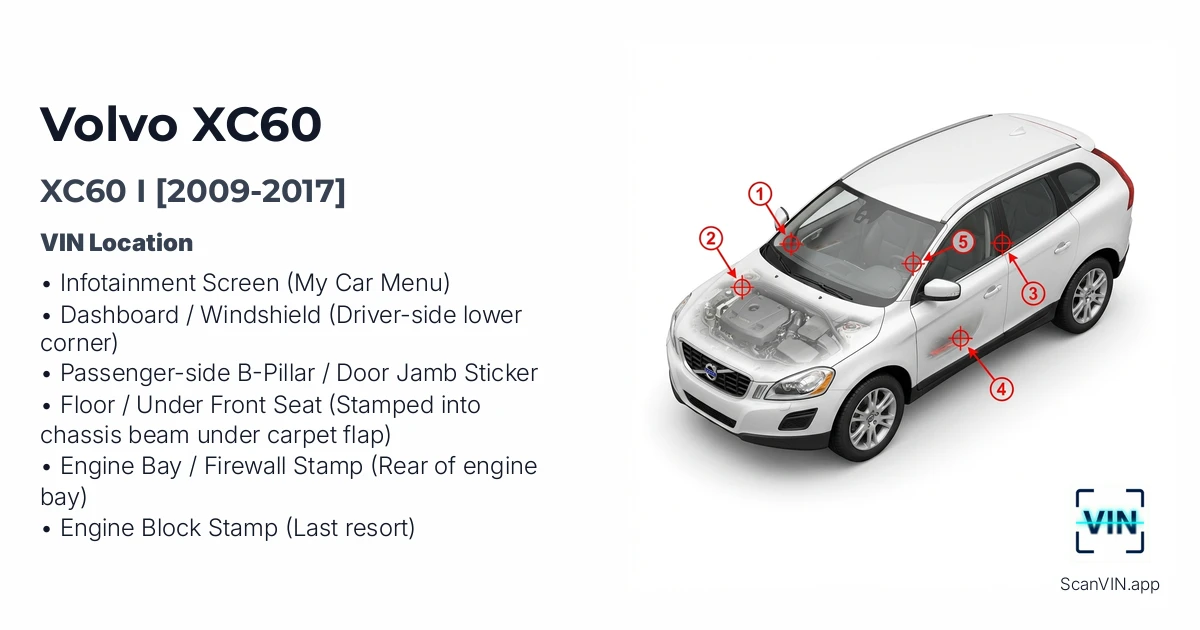

This guide covers every confirmed VIN (chassis number) location on the Volvo XC60 I, produced between 2009 and 2017, including the easy “consumer” spots and the harder stamped locations used for verification.

Chassis Number Locations

Infotainment Screen (My Car Menu)

• Where to look: Center screen path: My Car → Settings → Information → VIN number.
• Access: Easy, but the battery/ignition must be on; occasional screen glare can interfere.
• Note: Same process for LHD and RHD vehicles.
• Tip: If glare or screen flicker makes it annoying to copy, scan the VIN directly with your phone so you don’t mistype a single character.

Dashboard / Windshield (Driver-side lower corner)

• Where to look: Look through the windshield at the lower corner on the driver’s side—a white VIN plate with black text sitting under the glass.
• Access: Usually easy to see, but reflections and glare off the windshield can block the camera view.
• Note: Standard public VIN display location on XC60 I.
• Tip: When glare washes out the plate, capture it instantly with the VIN scanner by tilting the phone slightly and letting OCR grab the characters before reflections move.

Passenger-side B-Pillar / Door Jamb Sticker

• Where to look: Open the front passenger door and check the B-pillar (between the front and rear doors) for a black sticker with vehicle weights and the VIN in light text.
• Access: Easy—vertical surface, typically clean, and usually has good contrast for scanning.
• Note: This is a common Volvo label location and a strong secondary match to compare against the windshield/floor VIN.
• Tip: If you’re cross-checking VINs quickly at the roadside, use the free VIN reader to scan the sticker instead of manually keying it in.

Floor / Under Front Seat (Stamped into chassis beam under carpet flap)

• Where to look: Slide the front seat all the way back and find the pre-cut carpet flap in the front footwell floor; lift the flap to reveal the VIN stamped into the chassis beam.
• Access: Moderate—often low light in the footwell; the carpet flap can be stiff; the stamping may be dusty.
• Note: This stamped VIN is on the right-hand side of the vehicle floor pan (commonly passenger side on LHD vehicles). If you don’t find it there, check the other front footwell.
• Tip: Because it’s dark and you’re working one-handed, scan it using Flashlight + OCR so you don’t have to hold the carpet up and write the VIN down at the same time.

Engine Bay / Firewall Stamp (Rear of engine bay)

• Where to look: At the rear of the engine bay on the firewall/bulkhead area, slightly toward the passenger side; you may need to lift/push aside a rubber weather strip or cowl trim to see the stamping.
• Access: Hard—tight space, poor lighting, and trim/hoses can block a straight camera angle.
• Note: Best used as a verification point when matching all VINs on the car.
• Tip: When you’re wedged over the engine and can’t comfortably read it, scan it directly to avoid transcription errors from an awkward viewing angle.

Engine Block Stamp (Last resort)

• Where to look: Stamped on a machined flat surface of the engine block (exact side varies by engine variant).
• Access: Very hard—often hidden, grimy, and sometimes only visible with components moved or from below.
• Note: Not recommended for regular owners—this is more of a workshop-level check.
• Tip: If the stamping is faint/dirty and you must confirm it, use High Contrast AI Mode to decipher the characters after wiping the area clean.

Video Guide

Video Tutorial: Where is the VIN number of my Volvo XC60 I ( 2008 – 2017 ) - All VIN Number Locations

▶ Watch Volvo XC60 VIN Location Guide

• Clear walkthrough showing the floor VIN, windshield VIN, and infotainment VIN on an LHD XC60.

Video Tutorial: VOLVO XC60 T5 Number Engine & Chassis Location

▶ Watch Volvo XC60 VIN Location Guide

• Workshop-style guide showing the RHD floor VIN position plus the harder engine bay firewall and engine block stamps.

Common Problems & Troubleshooting

• Windshield VIN won’t scan: glare/reflections are the #1 issue—shade the plate with your hand and change the phone angle slightly.
• Floor VIN is hard to read: the footwell is dark and the stamping can be dusty—slide the seat fully back, lift the carpet flap, and wipe the metal before scanning.
• Door-jamb sticker mismatch: stickers can be replaced after repairs; always verify the VIN against at least one stamped location (floor/firewall) before buying.

---
